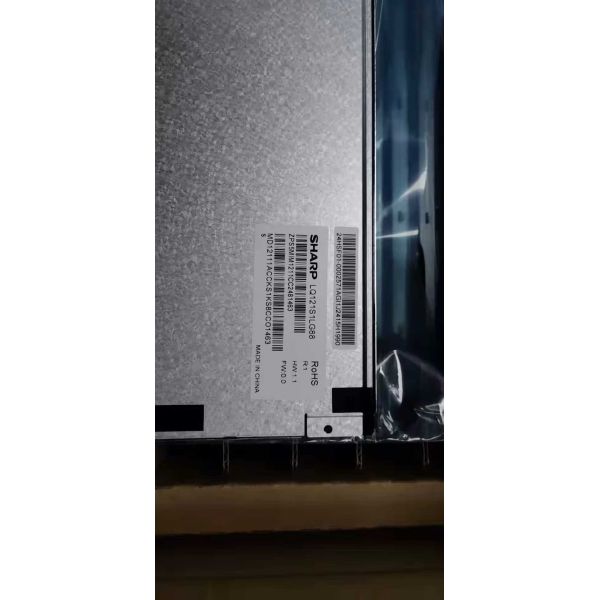

Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V
Sharp Corporation (hereafter called Sharp) LQ121S1LG88 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -15 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, Matte , Value IA. Based on its features, einklcd recommend that this model be applied to Industrial, Digital Photo Frame etc. According to the information stored in einklcd this model mass production on Q4, 2012, Now this model is in production. We inputted this model's specification on Jul 19 2012 for the first time, and the latest update on Nov 7 2024. If you want to embed LQ121S1LG88 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's distributor to learn lateast production and specification detail. The LQ121S1LG88 production status marked on einlcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand Sharp
Model P/N:LQ121S1LG88
Compatible Model 1 Compatible
Diagonal Size:12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 82PPI Pixel
Format RGB Vertical Stripe
Active Area 246(W)×184.5(H) mm
Bezel Opening 249.0(W)×187.5(H) mm
Outline Dim. 276(H)×209(V) ×9.6(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance :450 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Support Color 262K 53% NTSC
Light Source WLED , 50K hours , With LED Driver
Weight 750g (Max.)
Designed For Industrial Digital Photo Frame
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touch Panel Without
Interface Type LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -15 ~ 70 °C ;
Storage Temperature: -30 ~ 80 °C
