PVI 8inch e ink display model ED080XC2 1024*768pixels 160ppi EPD 33Pin
ED080XC2 is a 8.0" diagonal EPD display panel product from Prime View International Co., Ltd. (hereafter called PVI), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Reflective, Matte , Bi-stable. Based on its features, einklcd recommend that this model be applied to E-Book Reader etc. According to the information stored in einklcd this model mass production on Q1, 2009, Now this model is discontinued. We inputted this model's specification on Oct 10 2012 for the first time, and the latest update on Jun 23 2025. If you want to embed the EPD in your future product, einklcd strongly recommend that you should contact with PVI or it's agent to learn lateast production and specification detail of ED080XC2. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:PVI
Model P/N:ED080XC2
Diagonal Size 8.0"
Panel Type: EPD, EPD
Resolution1024×768, XGA 160PPI
Pixel Format: Rectangle
Active Area161.792(W)×121.344(H) mm
Bezel Opening-
Outline Dim.175.642(H)×138.344(V) ×1.28(D) mm
Treatment Antiglare, Hard coating
Luminance-
Contrast Ratio: 7:1 (Typ.) (RF)
View Direction-
Response Time: 780 (Typ.)(Tr+Td)
Viewing Angle
-Operating Mode-
Support Color: Grayscale
Light Source:No B/L
Weight: TBD
Designed For: E-Book Reader
Frame Rate-
Touch Panel: Without
Interface Type: Parallel Data (1ch, 8-bit) , 33 pins FPC
Power Supply: 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -25 ~ 70 °C
|
|

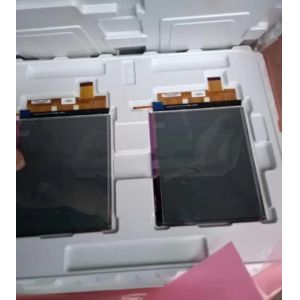

PVI 8inch e ink display model ED080XC2 1024*768pixels 160ppi EPD 33Pin Images
|
